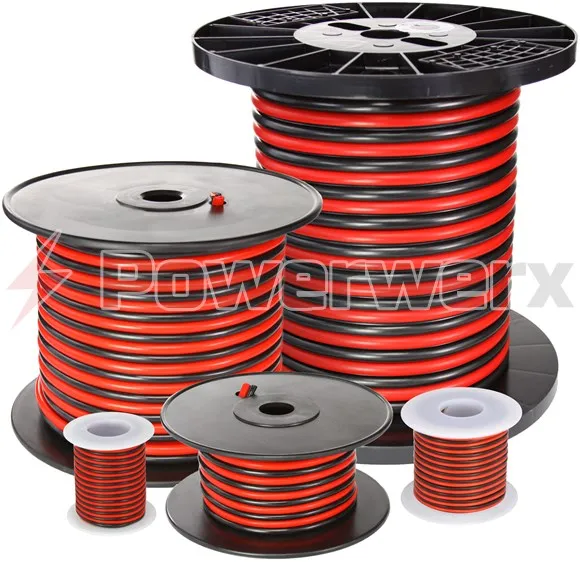

Red/Black Zip Cord is a low voltage DC power cable. Also called zip wire and bonded wire, the cables pull apart for quick separation. Easy to identify polarity for DC applications. Excellent for Amateur Radio, Automotive/Stereo, Robotics and R/C.

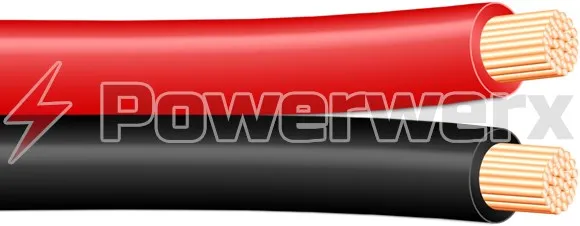

Conductor: Extra flexible soft bare copper stranding for maximum flexibility and conductivity
Insulation: Automotive grade "GPT" PVC insulation which is oil & gas resistant
Temperature Range: -40°C to 80°C (-40°F to 176°F)
Compliances: Designed to meet UL VW-1 Vertical Wire Flame Test, RoHS Compliant
Voltage Rating: 300 VAC
| Gauge (AWG) | Number of Strands | Gauge of Strands (AWG) | Finished Wire Diameter | |
| Inch | mm | |||
| 2 | 260 | 26 | 0.45 x 0.97 | 11.43 x 24.64 |
| 4 | 137 | 25 | 0.43 x 0.89 | 10.92 x 22.61 |
| 6 | 262 | 30 | 0.32 x 0.69 | 8.13 x 17.53 |
| 8 | 165 | 30 | 0.24 x 0.48 | 6.10 x 12.19 |
| 10 | 105 | 30 | 0.19 x 0.41 | 4.83 x 10.42 |
| 12 | 67 | 30 | 0.16 x 0.33 | 4.06 x 8.38 |
| 14 | 42 | 30 | 0.14 x 0.30 | 3.56 x 7.62 |
| 16 | 27 | 30 | 0.12 x 0.24 | 3.04 x 6.10 |
| 18 | 17 | 30 | 0.09 x 0.19 | 2.29 x 4.83 |
| 20 | 10 | 30 | 0.08 x 0.17 | 2.03 x 4.32 |
| 22 | 7 | 30 | 0.07 x 0.16 | 1.78 x 4.06 |
| 24 | 7 | 32 | 0.06 x 0.13 | 1.52 x 3.30 |
